Stanford Advanced Materials (SAM) recommends Nitinol alloys to address a key medical device challenge: combining the flexibility to navigate narrow, tortuous vessels with the strength to provide reliable support after deployment.
Why Conventional Materials Fall Short
The global MIS devices market exceeds US$550 billion and is projected to surpass US$940 billion by 2033. As devices advance into complex anatomical regions, they require both flexibility and radial strength. Conventional metals often lack these properties, while Nitinol overcomes these limitations through its unique mechanical performance.
Why Nitinol Works
Nitinol, a shape memory alloy, overcomes the limitations of conventional materials through two unique properties:
- Superelasticity
Nitinol can recover strains of up to 10%—about ten times greater than conventional medical metals—allowing devices to be compressed into small catheter profiles and self-expand upon deployment without balloon dilation. This property underpins self-expanding stents, transcatheter heart valves, and defect closure devices. - Shape Memory Effect
In its low-temperature martensitic phase, Nitinol can be deformed into a temporary shape and, when heated above its transformation temperature (typically engineered near body temperature), returns to its original form for autonomous deployment.
Medical-grade Nitinol also has an elastic modulus (28–83 GPa) closer to that of human bone, reducing stress shielding, while providing excellent biocompatibility, corrosion resistance, and fatigue performance.
Medical-Grade Nitinol Solutions

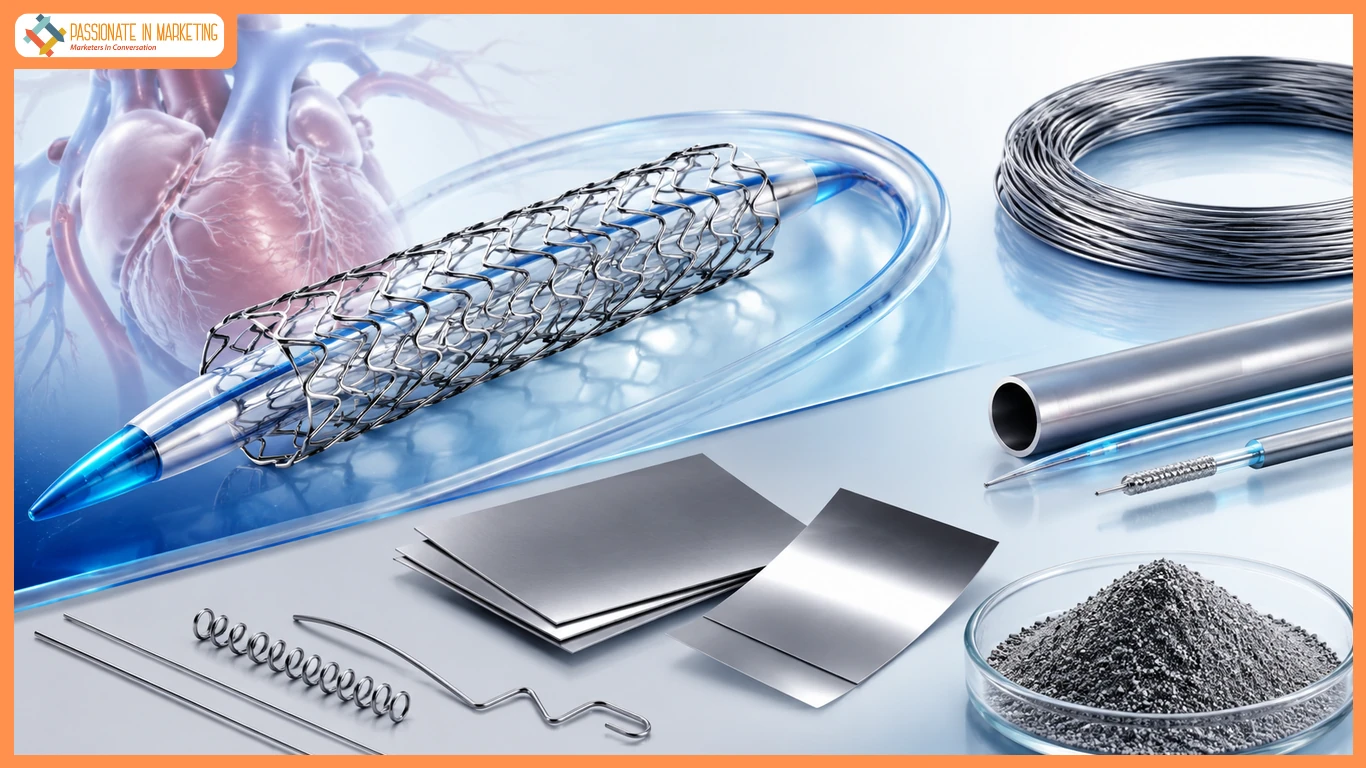

Medical-grade Nitinol is available in multiple forms, each optimized for specific medical device applications:
- Nitinol Tubing – Widely used for laser-cut self-expanding stents, biopsy devices, and endoscopic instruments. SAM provides tight concentricity control and superior surface finish for high manufacturing yields.
- Nitinol Guidewires – Offer excellent kink resistance, torque transmission, and steerability for navigating tortuous vessels. Also used in braided stents and filters.
- Nitinol Sheet & Foil – Enable flat-pattern fabrication followed by forming into final shapes. SAM’s tight thickness tolerances ensure dimensional accuracy and efficient production.
- Nitinol Alloy Powder – Supports powder metallurgy, metal injection molding (MIM), and additive manufacturing for complex, patient-specific, and porous implant designs.
SAM Offers a Highly Diversified Nitinol Product Portfolio
SAM offers a comprehensive portfolio of medical-grade Nitinol materials for demanding medical device applications, including:
- Wire: Diameters as small as 0.1 mm for guidewires, braided stents, filters, and other precision devices.
- Sheet & Foil: Tight thickness tolerances for planar designs that are subsequently formed into final geometries.
- Tubing: High concentricity and superior surface finish for laser-cut self-expanding stents.
- Springs & Custom Shapes: Tailored configurations to meet specialized application requirements.
- Platinum-Core Nitinol Composite Wire: Combines superelasticity with enhanced radiopacity and electrical conductivity.
- Nitinol Alloy Powder: ≥99.9% purity in multiple particle size ranges (e.g., 15–45 μm and 45–75 μm) for advanced manufacturing.
About Stanford Advanced Materials (SAM)
In addition to its product portfolio, SAM provides material customization, rigorous quality control, and engineering support from material selection through production, helping accelerate medical device development. For high-performance Nitinol materials or custom specifications, engineers and manufacturers can explore SAM’s complete product portfolio or contact the team for technical support.
